Features of Module
-Pure sine wave solar inverter
-Self-consumption and feed-in to the grid
-Inverter running without battery
-One-key restoration to factory settings
-Built-in 160A MPPT solar controller (for8.2kW, 10.2kW)
-High PV input voltage range (90-450VDC)
-Built-in anti-dusk kit for harsh environment
-Smart battery charge design to optimize battery life
-Dual output
-Touch button
-WiFi available for IOS and Android
RGB Light
RBG lighting for different working modes
RGB automatically switches under different working modes of inverter:
Battery mode: red;
Utility mode: blue;
PV mode: purple;

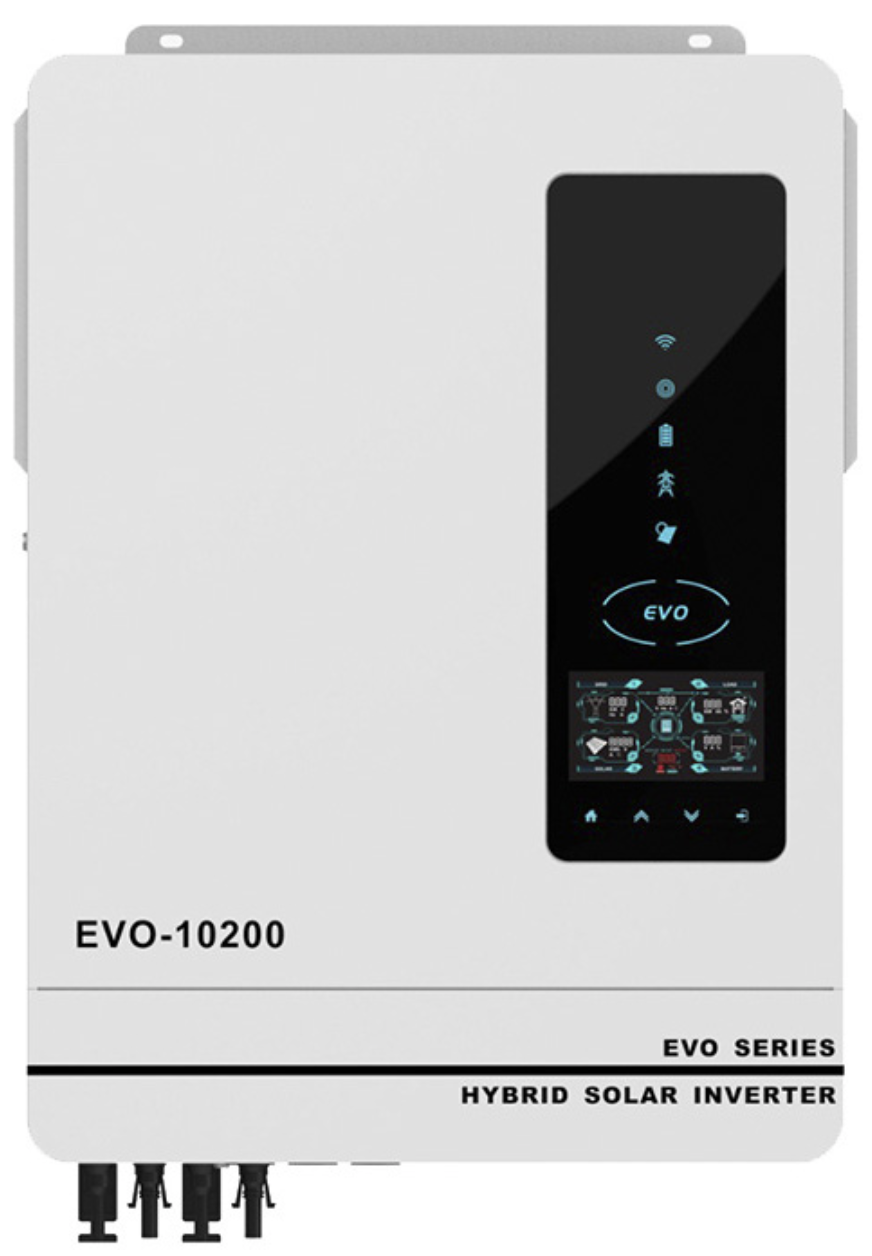

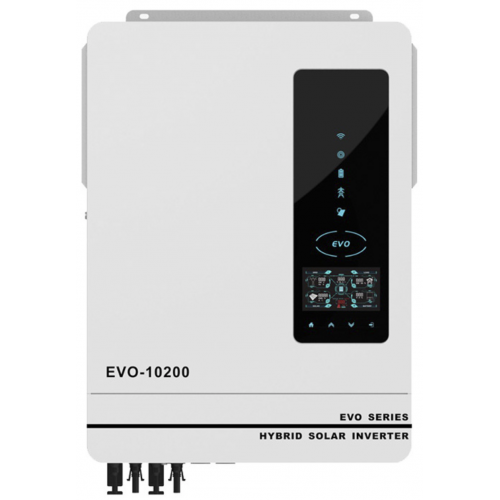

Model: AN-SCI-EVO-10200
Rated Power: 10200W
Max PV Input Power: 10800W
Grid-Tie Operation PV Input(DC)
Nominal DC Voltage/Max DC Voltage: 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC
Max DC Voltage: 90-450VDC
Number of MPPT Trackers/Max Input Current: 2/18A
Grid Output(AC)
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195.5-253VAC
Nominal Output Current: 44.3A
Power Factor: >0.99
Feed-in Grid Frequency Range: 49-51+-1Hz/59-61+-1Hz
Efficiency
Max Conversion Efficiency (Solar to AC): 98%
Two-Load Output Power
Full Load: 10200W
Max Main Load: 10200W
Max Second Load(Battery Load): 3400W
Main Load Cut-Off Voltage: 44VDC
Main Load Return Voltage: 48VDC
Off-Grid Operation AC Input
AC Start-up Voltage/Auto Restart Voltage: 120-140VAC/180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Max AC Input Current: 50A
Nominal Operating Frequency: 50/60Hz
Surge Power: 20400W
Battery Mode Output(AC)
Nominal Output Voltage: 220/230/240VAC
Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 94%
Battery & Charger
Nominal DC Voltage: 48VDC
Max Charging Current (Solar to AC): 160A
Max AC Charging Current: 160A
General Physical
Dimension, D x W x H (mm): 530*390*130mm
Net Weight (kgs): 14.5kg
Interface
Communication Interface: WiFi
Operating Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10C - 50C
Storage Temperature: -15C - 60C
